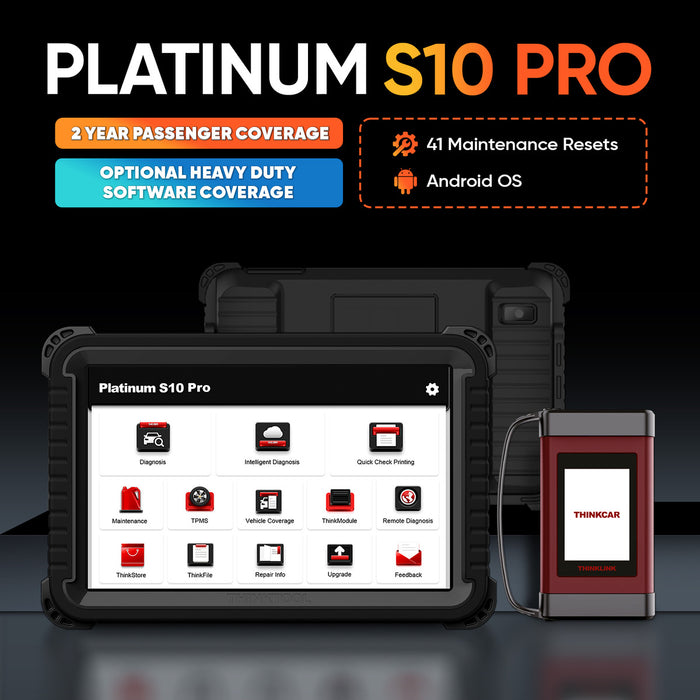

Thinkcar Platinum S10 PRO 10-Inch Professional Diagnostic Tablet - Bi-Directional OBD2 Scanner for Passenger & Heavy Duty Trucks
by THINKCAR

Thinkcar Platinum S10 PRO 10-Inch Professional Diagnostic Tablet - Bi-Directional OBD2 Scanner for Passenger & Heavy Duty Trucks

SKU 301030042
Availability:
Low stock
Save 27% Save 27%
$2,999.00
$2,999.00 - $2,999.00
$2,999.00
$2,195.00
$2,195.00 - $2,195.00
$2,195.00

The THINKCAR Platinum S10 Pro is a professional-grade automotive diagnostic solution designed for advanced technicians and growing repair facilities. Built on Android 10 with a powerful quad-core processor, 10-inch touchscreen, and THINKLINK wireless VCI, the S10 Pro delivers full-system diagnostics, active testing, ECU reset functions, and optional expansion into ADAS calibration, TPMS programming, heavy-duty vehicle coverage, and J2534 pass-thru programming.

This is not a basic code reader.
This is a scalable diagnostic platform built for serious automotive professionals.

Key Features
  • Full-System Diagnostics with Auto VIN & Active Tests: Perform complete system scans on Engine, ABS, SRS, Transmission, BCM, HVAC and more with bi-directional active testing and ECU reset capabilities.
  • Advanced Workshop Capabilities - IMMO, Coding & Relearn: Supports ECU reset & relearn, IMMO programming, DPF regeneration, turbo system service, clutch matching, power balance testing, and more.
  • 35+ Maintenance Functions Built-In: Oil reset, EPB, SAS, TPMS, injector coding, suspension reset, battery match, NOx reset, throttle relearn, gearbox adaptation and many more.
  • Expandable Platform - ADAS, TPMS & Heavy-Duty Ready: Optional ADAS calibration, HD commercial vehicle software, and TPMS functionality available to scale with your business.
  • J2534 Pass-Thru Programming Capability: THINKLINK VCI supports J2534 for OEM-level ECU reprogramming (manufacturer subscription required).

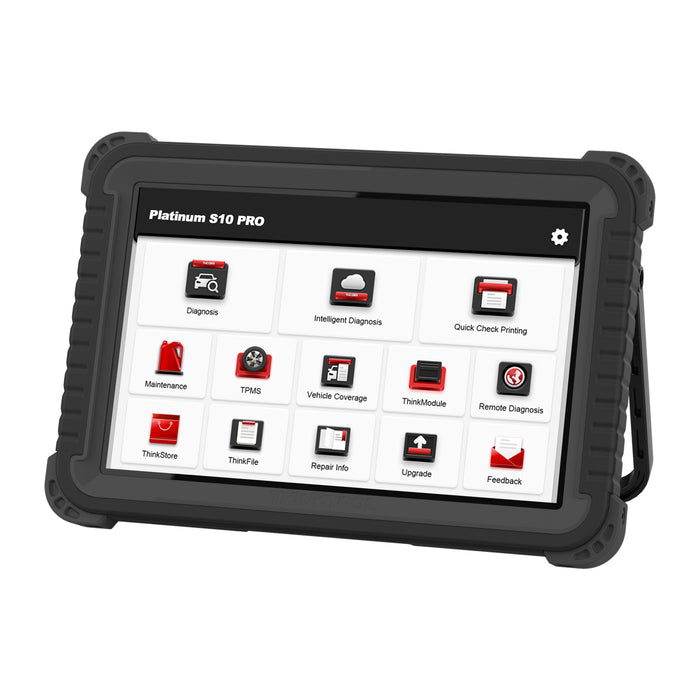

  • 10” HD Touchscreen + Wireless THINKLINK VCI: Powered by Android 10, quad-core 2.0GHz processor, 4GB RAM / 64GB storage with Bluetooth 5.0 VCI for fast, stable diagnostics.
  • 2-Year Passenger Software Included: Includes 2 years of passenger vehicle software. Optional heavy-duty commercial vehicle software available via subscription.
Software Coverage & Updates
  • Software – PassengerIncludes 2-Years of Free Passenger Vehicle Coverage
  • Software – Heavy DutyOptional Upgrade
  • Software – EVNot Included
  • Subscription PolicyOptional - Continued software updates require a renewal subscription. The device will continue to function with the last installed version even if the subscription is not renewed.

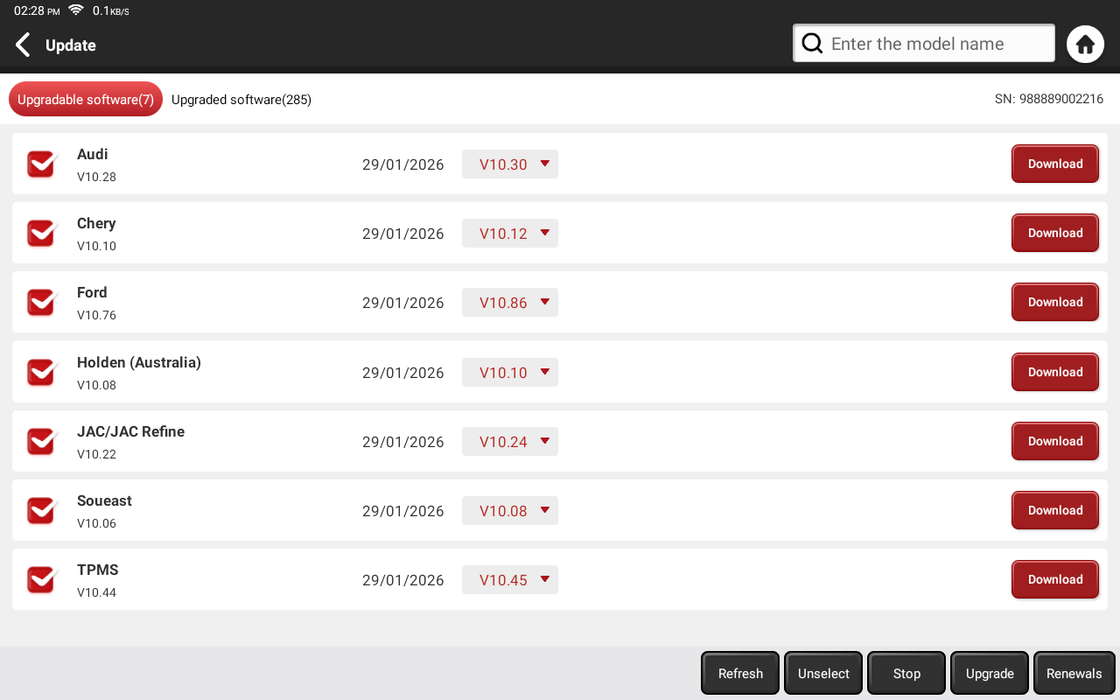

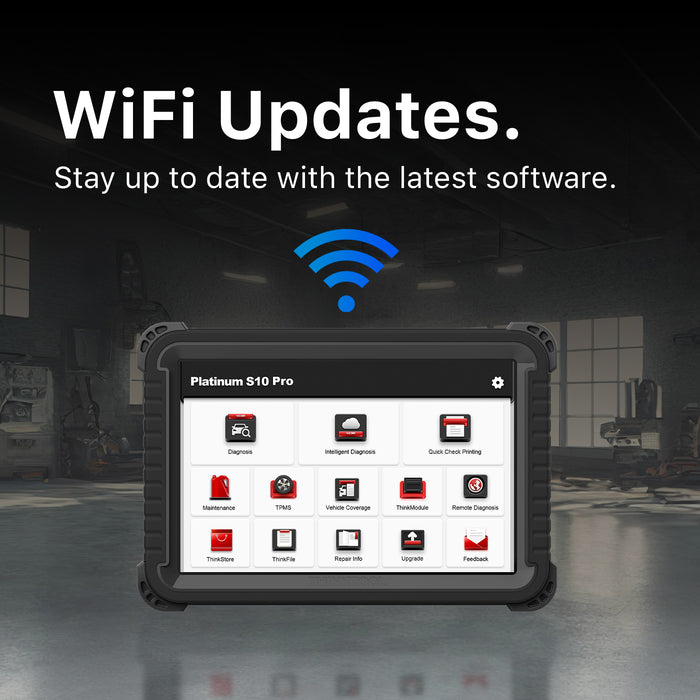

  • Update MethodWi-Fi One-Click Updates

Free U.S. Shipping

Ships from our U.S. warehouse in 2–5 business days.Details

Easy Return

Shop with confidence. 30-Day Hassle-Free Returns.Details

Specifications

Diagnostic Capabilities

  • Maintenance Resets35
  • Read & Clear DTCsYes
  • VIN IdentificationYes
  • OBD2 & EOBDYes
  • Live DataYes
  • Bi-Directional ControlYes

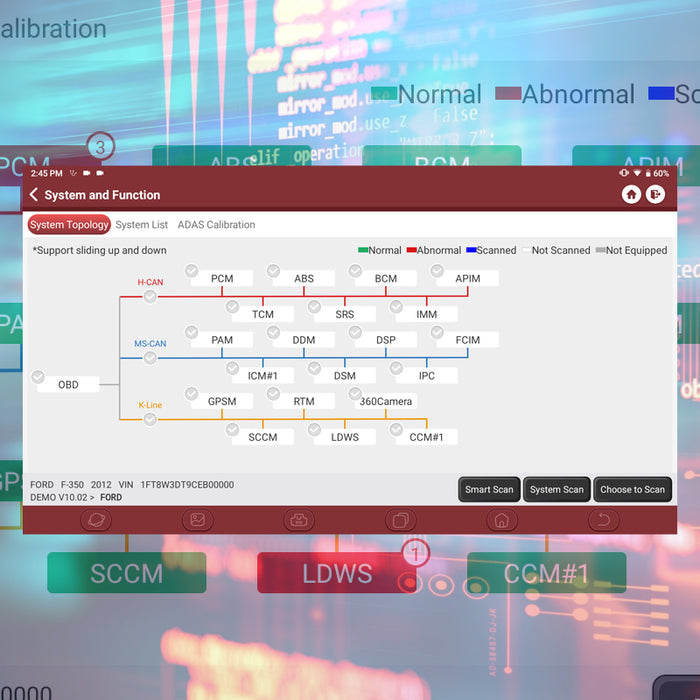

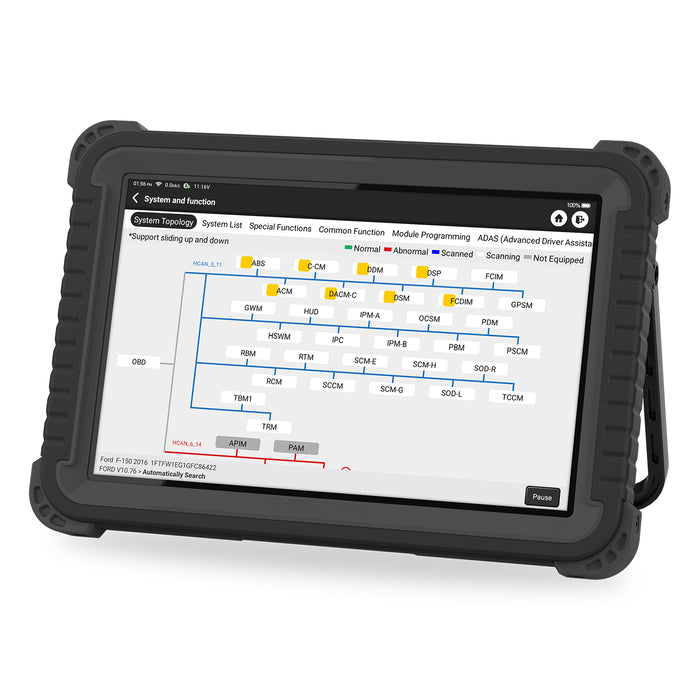

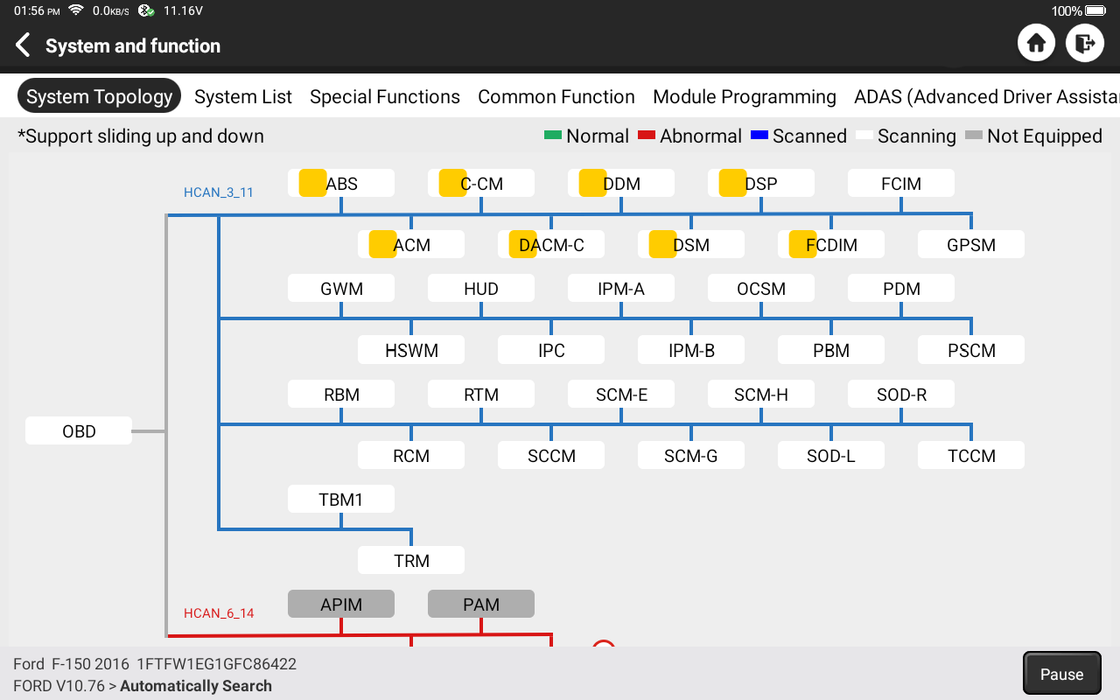

  • TopologyYes
  • ADASYes - Optional
  • TPMSYes

Hardware & Performance

  • Screen Size 10.0 Inches
  • Operating SystemAndroid 10.0
  • Processor2.0GHz l OCTA-Core
  • RAM4 GB
  • Storage128 GB
  • Battery12600 mAh
  • VCITHINKLINK OBD2 VCI

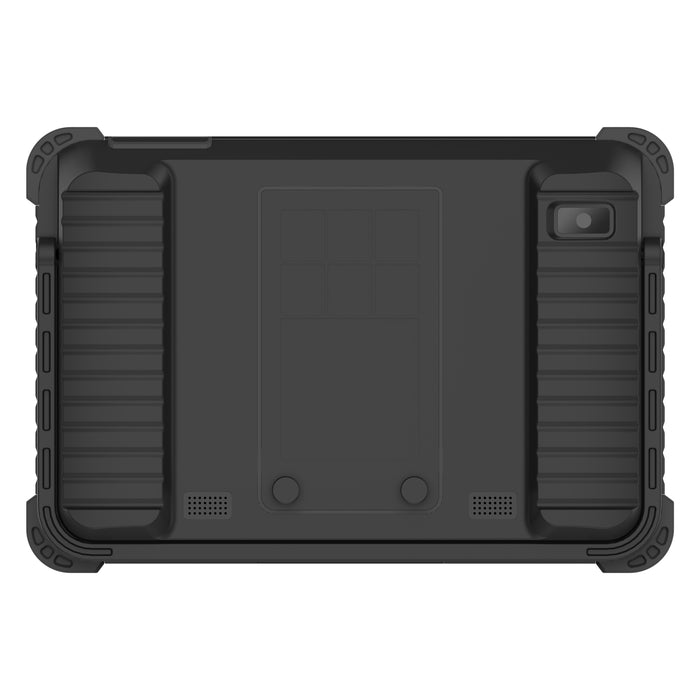

  • Camera Rear8.0 MP

Connectivity

  • Supported ProtocolCAN, CAN FD, UDS (ISO 14229), KWP2000 (ISO 14230-4), ISO 9141-2, SAE J1850 VPW/PWM, J2534 Pass-Thru (Optional HD: J1939 / J1708)
  • WiFiYes
  • BluetoothYes
  • USB TypeUSB Type C

Coverage

  • Supported LanguagesMulti-Language Interface
  • Supported Vehicle Brandssupports diagnostics for most U.S., Asian, and European passenger vehicles, including major global manufacturers such as: Ford, GM, Chrysler, Toyota, Honda, Nissan, Hyundai, Kia, BMW, Mercedes-Benz, Audi, Volkswagen, Porsche, Volvo, Land Rover, Subaru, Mazda, Mitsubishi, and more. Optional Heavy-Duty software expands coverage to commercial trucks and buses. Vehicle coverage and available functions vary by model, year, and system configuration.

Software, Activation & Coverage

  • Internet Required for UpdatesYes - WiFi connection required for software updates
  • Activation RequiredYes - Device activation required before first use
  • Activation MethodOnline activation through THINKCAR account (WiFi required)
  • Renewal PolicyIncludes 2 Years of Passenger Vehicle Software Updates. After expiration, renewal is optional. Tool remains functional without renewal; however, new software updates and newly released vehicle coverage require subscription renewal.
  • Compatible WithCompatible with most 12V OBDII-compliant passenger vehicles, including domestic, Asian, and European brands. Supports CAN, CAN FD, and J2534 pass-thru programming (OEM subscription required). Optional heavy-duty vehicle coverage available with HD software package.
  • Not Compatible WithNot intended for agricultural machinery, marine engines, aircraft, or 24V heavy-duty vehicles without the optional HD software package. ADAS calibration requires compatible calibration frame and accessories.
  • Function NoticeAvailable diagnostic functions, special services, coding, and programming capabilities vary by vehicle make, model, year, system configuration, and selected software package. Not all vehicles support every feature.

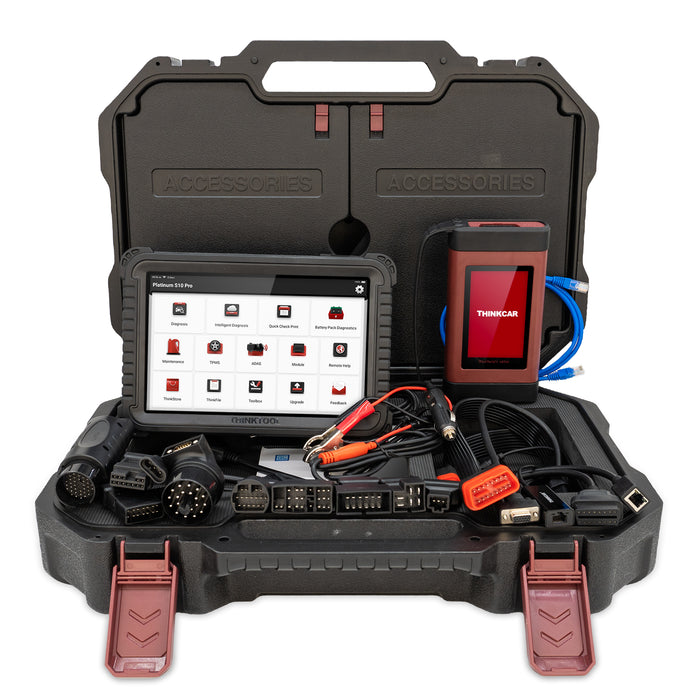

What’s Included

  • Diagnostic Tablet, THINKLINK Wireless OBD2 VCI, OBD-I Adapters, Power Adapter & Charging Cable, Protective Carrying Case, User Manual, Software Activation Code
Warranty & Support
  • Manufacturer Warranty1-year Limited Warranty
  • Support TypeUSA-based Technical Support
  • Return Policy30-Day Returns (Direct Purchases)
  • Refund Policy

    Returns must be initiated within 30 days of delivery; Activated products may be subject to a restocking fee -Review Refund Policy.

Shipping & Packaging
  • SKU 301030042
  • Model NumberPLATINUM S10 PRO
  • Ship Method Ground - Standard Parcel
  • Shipping Lead Time1–2 Business Days
  • Number of Boxes1

Packaging Details

  • Box 1:22.0 × 7.0 × 15.0 Inches|18.0 Lbs
Documentation & Resources

User Manual

User Manual

Sales Resources

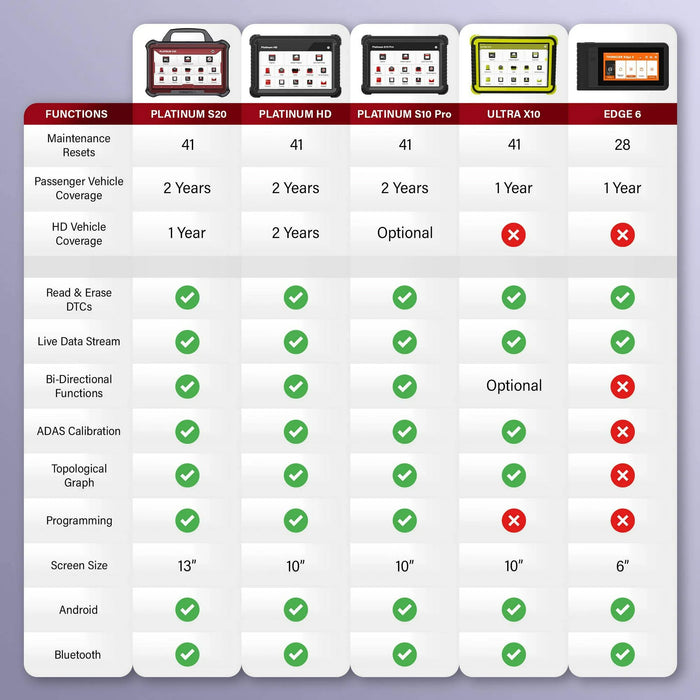

PLATINUM Tools Comparison Chart

Powerful VCI Connection

J2534 Bypass Functionality

J2534 Bypass Functionality

By utilizing J2534 bypass, VCIs provide direct access to the vehicle's electronic control units (ECUs) without the need for additional hardware or interfaces. This direct access enables comprehensive diagnostics and allows for advanced programming and reprogramming capabilities.

Optional Software

Heavy Duty Vehicle Coverage

Heavy Duty Vehicle Coverage

With the optional HD software, the ThinkCar tablet expands its diagnostic capabilities to cover a wide range of heavy-duty vehicles, including trucks, buses, and commercial vehicles. This comprehensive coverage enables technicians to diagnose and troubleshoot complex issues in these vehicles, saving time and effort.
