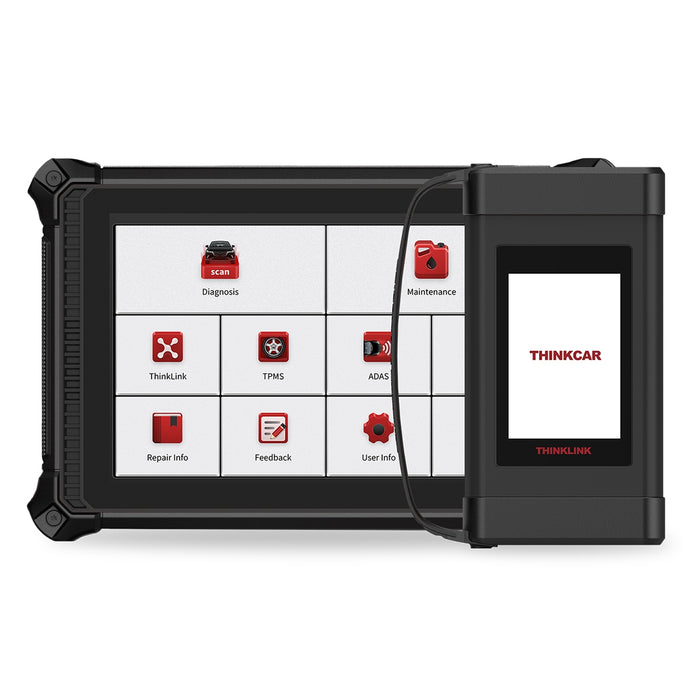

PLATINUM 393 - 10" Full System Professional Car Diagnostic Scanner with 41 Maintenance Reset Functions
The THINKCAR PLATINUM 393 is a highly advanced 10-inch full-system car diagnostic scanner designed for professional mechanics. It features an impressive 4+128G memory and storage, as well as 41 maintenance reset functions and a high-capacity 12600mAh battery. With features such as WiFi/Bluetooth/wired diagnosis, video remote diagnosis, 41 maintenance software, online programming, and ADAS, this all-in-one device offers a comprehensive solution for diagnostic purposes. Its extensive capabilities are particularly beneficial for mechanics focused on vehicle diagnostics and repairs, allowing for increased productivity and efficiency.
QUICK START GUIDE
FEATURES
- 10" Inch Large Touchscreen
- 41 Maintenance Functions
- ADAS Calibration
- Bi-directional Communication for Actuation Testing
- Comes with 11 OBD1 and OBD2 adapters, catering to different vehicle types.
- Dealer & OEM Level Diagnostics
- Dual USB ports (USB C and USB A) for connecting to various devices and accessories.
- Full Diagnostics, Supports 12V & 24V Passenger Cars, Commercial Cars, Hybrid, and Heavy-Duty
- High-Quality Imaging: Includes a 13 MP HD camera with LED light
- Online Programing
- Reading and Clearing Fault Codes
- Live Data Stream
- TPMS & ADAS Calibration Support
- Provides Coverage on 98% of Domestic Vehicles
- Wide Compatibility Equipped with J2534, DoIP and CAN FD capabilities
SPECIFICATIONS
- Bluetooth VCI: THINKLINK
- Product Dimensions: 302*199*36.5mm
- Display 10.1 inches
- Resolution: 1280*800
- RAM 4G / 128G Stroage
- System: Android 10
- Diagnostic Mode: WiFi/Bluetooth/Wired
- Battery (mAh) 3.8V/12600
- Rear Camera: 13 Million
- Microphones: Yes
- LED Lights: Yes
- Tire Pressure Antenna: Yes
- External interface: Type-C Port
MAINTENANCE FUNCTIONS
Built in System Scan
- AC System Relearn
- Clutch Matching
- ECU Reset & Relearn
- Engine Power Balance
- FRM Matching
- DPF Regeneration Gateway Module High Voltage Battery
- IMMO Programming
- ICC Calibration
- Motor Angle Calibration
- Rainfall Light Sensor
- Turbo Chargin System
Included Standard Resets
Mode 01 - Request Current Powertrain Diagnostic Data: Retrieves real-time data from the vehicle's engine and emission systems, such as engine RPM, vehicle speed, fuel trim, and more.
Mode 02 - Request Freeze Frame Data: Retrieves a snapshot of the vehicle's data at the time when a Diagnostic Trouble Code (DTC) was triggered, providing a valuable reference for diagnosis.
Mode 03 - Request Stored Diagnostic Trouble Codes: Retrieves the DTCs stored in the vehicle's computer memory, indicating specific issues or faults that have been detected.
Mode 04 - Clear/Reset Diagnostic Trouble Codes: Clears or resets the stored DTCs and turns off the Check Engine Light (MIL) after the related issues have been resolved.
Mode 05 - Request Oxygen Sensor Monitoring Tests: Monitors the operation and performance of the oxygen sensors in the vehicle's exhaust system, providing data on fuel mixture and emissions.
Mode 06 - Request On-Board Monitoring Tests Results: Provides access to the results of various self-tests conducted by the vehicle's onboard systems, including catalyst efficiency, evaporative system, and more.
Mode 07 - Request Pending Diagnostic Trouble Codes: Retrieves the DTCs that are pending and have not yet triggered the Check Engine Light, indicating potential issues that require attention.
Mode 08 - Request Control of On-Board Systems: Allows control and testing of certain vehicle systems or components, such as turning on/off specific actuators or performing system self-tests.
Mode 09 - Request Vehicle Information: Retrieves information about the vehicle's identification, calibration, and programming, including VIN (Vehicle Identification Number), ECU software version, and more.
Mode 10 - Request Permanent Diagnostic Trouble Codes: Retrieves any permanent DTCs that cannot be cleared by the vehicle's computer, indicating persistent issues that require further attention.
41 Available Maintenance Functions
- Air-to-Fuel Ratio Reset
- AdBlue Reset
- AFS Reset
- Airbag Reset
- ABS Bleeding Reset
- Battery Match
- Brake Reset
- Coolant Bleed Reset
- DPF Regeneration
- EGR Adaptation
- Elec Throttle Relearn
- Gear relearn Reset
- Gear Box Relearn
- immobilizer Reset
- Injector Reset
- NOX Sensor Reset
- Odometer
- Oil Reset
- SAS Reset
- Seat Calibration
- Stop & Start Reset
- Sunroof Reset
- Suspension Reset
- TPMS Resets
- Tire Refitting Reset
- Window Calibration
- Transport Mode
- Language Change
- + More
SOFTWARE
- 2 Years of Passenger Vehicle Coverage
- Optional Heavy-Duty Vehicle Subscription
WARRANTY
1 Year Limited
