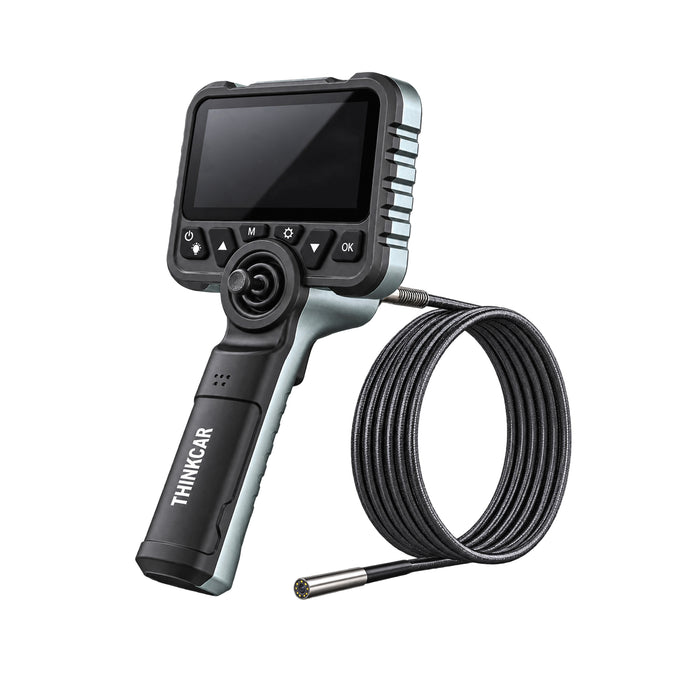

Thinkcar ES502 4-Way Articulating Video Endoscope - 5" HD Inspection Camera
by THINKCAR

Thinkcar ES502 4-Way Articulating Video Endoscope - 5" HD Inspection Camera

SKU 30001550
Availability:
in stock, ready to be shipped
$518.95 - $518.95
$518.95
$518.95 - $518.95
$518.95

The THINKCAR ES502 4-Way Articulating Video Endoscope gives automotive technicians a clear view inside hard-to-reach areas without unnecessary disassembly. Designed for professional automotive and mechanical inspection, its 6.2mm camera probe can be manually articulated in four directions with a steering angle of up to 210°, making it easier to inspect cylinders, combustion chambers, HVAC components, catalytic converters, and other confined areas.

Key Features
  • Best For / User Type
    4-Way Articulating Camera Control: Manually steer the camera probe in four directions with up to a 210° steering angle, giving technicians greater control when navigating tight, curved, and difficult-to-see areas.
  • Core Diagnostic Capability
    6.2mm Slim 2MP Inspection Camera: The compact 6.2mm (1/4") camera delivers 2-million-pixel imaging and can access confined areas such as engine cylinders, combustion chambers, HVAC systems, and other mechanical components.
  • Maintenance Reset Value
    Large 5" HD Display: View inspections directly on the built-in 5-inch screen with 1280 × 720 resolution—no smartphone, app, or separate display required.
  • System Coverage
    IP67 Camera + 6 Adjustable LEDs: The inspection camera features an IP67 waterproof rating and six bright LEDs with three-level brightness adjustment for improved visibility in dark or difficult inspection areas.
  • Ease of Use
    High-Temperature Protection: Built-in protection automatically cuts the camera signal/power when probe temperatures exceed 80°C (176°F), helping protect the inspection system in high-temperature environments.
  • Vehicle Compatibility / Coverage
    Long-Lasting Rechargeable Battery: The built-in 3500mAh battery provides approximately 5–6 hours of operating time, making it suitable for extended use in professional repair shops.
Getting Started
  • Screen Capture

    Yes

Free U.S. Shipping

Ships from our U.S. warehouse in 2–5 business days.Details

Easy Return

Shop with confidence. 30-Day Hassle-Free Returns.Details

USA-Based Technical Support

Real experts to help with setup & diagnostics

Specifications

Ease of Use

  • Recommended For

    General automotive and mechanical inspection

Diagnostic Capabilities

  • Data Export

    Yes via SD Card

Hardware & Performance

  • Screen Size5

Connectivity

  • Data Transfer Method

    Yes via SD Card

Shipping & Packaging
  • SKU 30001550
  • Model NumberES502
  • Ship MethodSmall Parcel - Ground
  • Shipping Lead Time1-3 Business Days
  • Number of Boxes1

Packaging Details

  • Box 1:14.0 × 10.0 × 7.0 Inches|1.0 Lbs
