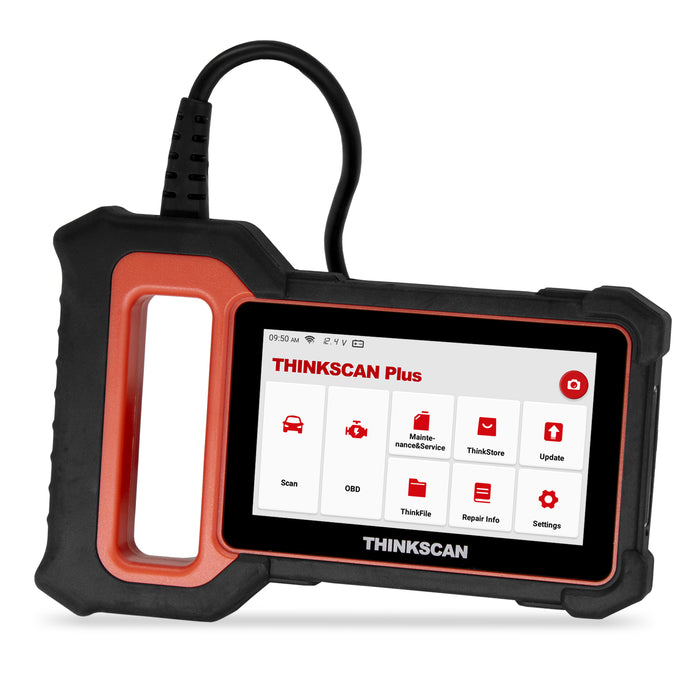

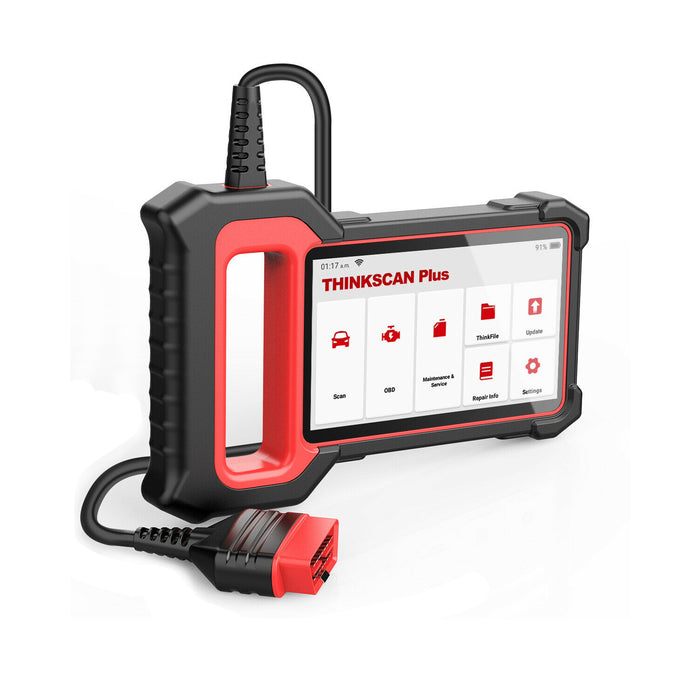

Thinkcar THINKSCAN PLUS S2 5-Inch OBD2 Car Diagnostic Scanner with 3 System Reset Functions Check Engine/ABS/SRS Code Readers Diagnostic Tool
📅 30 Days Money-Back Guarantee.
FREE SHIPPING INCLUDED*
We offer FREE Shipping on All orders within the United States, excluding HI, AK, VI, GU. International shipping fees will be calculated at checkout.
The THINKSCAN PLUS S2 is a 5-inch touchscreen OBD2 scanner designed for DIYers and entry-level technicians, offering 3-system diagnostics (Engine, ABS, SRS) with all 10 OBD2 modes. It connects directly to your vehicle's OBD2 port with no app or subscription required, and updates easily via Wi-Fi for lifetime software access. Compact, fast, and ready to use out of the box.
QUICK START MANUAL
FEATURES
- 5"-inch Touch Screen
- Wi-Fi Updates
- Support OBD2 All 10 Modes
- Connect via 16-PIN OBD2 Protocols
- Read & Erase Fault Codes
- Freeze Frame
- DTC Lookup
- Android 7.0 OS
- Storage Capacity: 16G
- Plug & Play Scanner
- Print Diagnostic Report
- Save & Transfer Data
- Screen Record Capabilities
- Screen Capture Capabilities
- AutoVIN Service, Diagnostic Report, Battery Voltage Monitoring
- Multilingual Support: Multi-languages: English, français, Español, Deutsche, italiano, Português, 日本語, русский.
MAINTENANCE RESETS
Built-in System Functions
- ECU
- ABS
- SRS
Choose 2 Free Maintenance Resets from 28 Available Maintenance Functions
- Air-to-Fuel Ratio Reset
- AdBlue Reset
- AFS Reset
- Airbag Reset
- ABS Bleeding Reset
- Battery Match
- Brake Reset
- Coolant Bleed Reset
- DPF Regeneration
- EGR Adaptation
- Elec Throttle Relearn
- Gear relearn Reset
- Gear Box Relearn
- immobilizer Reset
- Injector Reset
- NOX Sensor Reset
- Odometer
- Oil Reset
- SAS Reset
- Seat Calibration
- Stop & Start Reset
- Sunroof Reset
- Suspension Reset
- TPMS Resets
- Tire Refitting Reset
- Window Calibration
- Transport Mode
- Language Change
Included Standard Resets
- Mode 01 - Request Current Powertrain Diagnostic Data: Retrieves real-time data from the vehicle's engine and emission systems, such as engine RPM, vehicle speed, fuel trim, and more.
- Mode 02 - Request Freeze Frame Data: Retrieves a snapshot of the vehicle's data at the time when a Diagnostic Trouble Code (DTC) was triggered, providing a valuable reference for diagnosis.
- Mode 03 - Request Stored Diagnostic Trouble Codes: Retrieves the DTCs stored in the vehicle's computer memory, indicating specific issues or faults that have been detected.
- Mode 04 - Clear/Reset Diagnostic Trouble Codes: Clears or resets the stored DTCs and turns off the Check Engine Light (MIL) after the related issues have been resolved.
- Mode 05 - Request Oxygen Sensor Monitoring Tests: Monitors the operation and performance of the oxygen sensors in the vehicle's exhaust system, providing data on fuel mixture and emissions.
- Mode 06 - Request On-Board Monitoring Tests Results: Provides access to the results of various self-tests conducted by the vehicle's onboard systems, including catalyst efficiency, evaporative system, and more.
- Mode 07 - Request Pending Diagnostic Trouble Codes: Retrieves the DTCs that are pending and have not yet triggered the Check Engine Light, indicating potential issues that require attention.
- Mode 08 - Request Control of On-Board Systems: Allows control and testing of certain vehicle systems or components, such as turning on/off specific actuators or performing system self-tests.
- Mode 09 - Request Vehicle Information: Retrieves information about the vehicle's identification, calibration, and programming, including VIN (Vehicle Identification Number), ECU software version, and more.
- Mode 10 - Request Permanent Diagnostic Trouble Codes: Retrieves any permanent DTCs that cannot be cleared by the vehicle's computer, indicating persistent issues that require further attention.
COMPATIBILITY
A key feature of the Thinkcar THINKSCAN PLUS S2 is its standard OBD2 16-pin connector. This connector adheres to the industry standard interface commonly found in vehicles manufactured after 1996. It ensures seamless compatibility and enables easy and reliable access to the vehicle's onboard diagnostic system.
Note: The specific functionality and features may vary based on the vehicle make, model, and software capabilities.
SOFTWARE
Included
- 3 Build-in System Diagnosis
- 2 Free Optional Reset Functions
- 28 Optional Reset Functions
- Passenger Vehicle Software Coverage
* Does not cover Heavy Duty Vehicle Software Coverage
WARRANTY
1 Year Limited
